Item specifics
  • OSD Language: English
  • Model Name: CA938
  • Material Type: plastic
  • Type: Visible
  • Brand Name: FEELDO
  • Talk Range: Detecting distance:0.3-2.5m
Product Description
Description:
If you have the car mornitor or car dvd player with RCA  connector AV-IN function , you can only buy our this set items, and constitute with yours  as whole set visual reversing parking radar system.

Features:
(1)Supports all parking sensor power-on self-testing function
(2)Display real image and distance of obstacle on screen
(3)Left and right direction indicate,distance buzzer beep alarm
(4)The rear detection distance is from 0.4m~2.5m
(5)The front detection distance is from 0.3m~0.8m
(6)Two way camera video input,one way composite video output

Specifications:
Rated voltage:DC12V
Operating range:10.5V-16V
Rated current:40~800mA
Detecting distance:0.40m~2.5m(Rear)/0.3m~0.8m(Front)
Ultrasonic frequency:40KHz
Working temperature:-40C~+80C(Celsius)
Sensor color:white,black,gold,silver,blue,green,orange,yellow,red

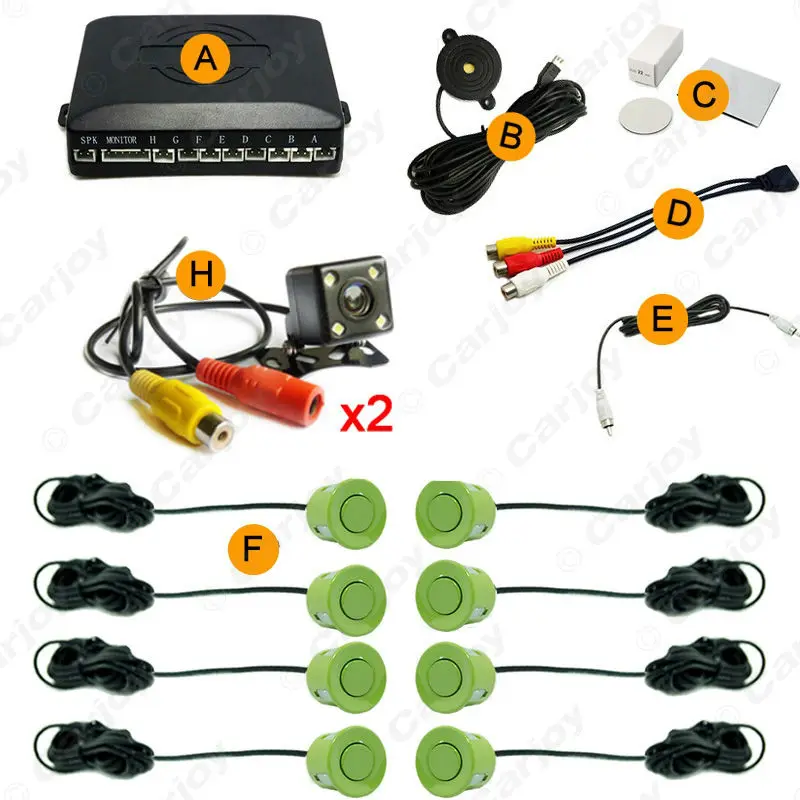

Packing List:
1x Car 8-Sensor Rearview Parking System Backup Radar Main Box
8x Radar Sensor(Front:4/Rear:4)
1x Buzzer Speaker
1x Composite video cable
1x 1.5meter RCA cable
1x Power cord
1x Holesaw(22mm dia)

Specifications:
Reverse Image/Mirror Image
Night version
Come with 4 super LED lights
Waterproof IP Rating: IP68
Distance reference line
Image feature:CCD (made in Japan)
TV System: NTSC(if need PAL,pls send the message to us)
Effective pixels: NTSC:728*582 ( PAL:728*512)
View angel:170°
Horizontal Resolution(TV lines):480TV lines
minimum illumination:0.6Lux/F1.2
current consumption:Max 120mA
Power Supply:DC12V
Working temperature:-20C°~70C°,Max Rh95%
Storage temperature:-40C°~80C°,Max Rh95%

Item Include:
2 x CCD Wide angle 170 Degree Car Camera with 4pcs LED light
2 x Power Cord
2 X RCA Cable

*Noticed*
This 8-sensor visual parking radar system need 2PCS cameras(front&rear) and monitor.
The camera and monitor are optional,you need buy them separately.
