Item specifics
  • OSD Language: English
  • Model Name: SW836BPV
  • Talk Range: 2.5M
  • Type: Visible
  • Material Type: Plastic
  • Brand Name: CAR ROVER
  • sensor de aparcamiento: Yes
  • car parking sensor: Yes
  • Parktronic: Yes
  • sensor aparcamiento: Yes
  • reverse sensor: Yes
  • sensor retroceso: Yes
  • Parktronic sensor 4: Yes
  • parking system: Yes
  • car reverse sensor: Yes
  • reversing sensors: Yes
Product Description

Auto Parking Sensor with Rear View Mirror 4.3 inch LCD Display Parktronic sensor 4 car detector 8 Color Rearview Backup Camera

GREAT FEATURES:
Waterproof, can be Used both in car and home
* Automatically Night Vision within 3 meters

* High-definition and Wide viewing angle

* Easy to install, you can install the monitor via mount holder or universal bracket

* Can see both distance and parking guild line together from the monitor
* Parking sensor speaker alarm indicator



PRODUCT PHOTOS:



IMG_1993

1

SW 836B MONITOR PARAMETER:
Screen size 4.3 inch
Material TFT LCD
Resolution 480RGB*272
Color Black
Video Input 2 way (Video 1 & Video 2)
Power Supply DC 12V(Max 2.5W)
Operating Temperature (Deg.C) -30~+80(RH95% Max.)
Storage Temperature (Deg.C) -40~+85(RH95% Max.)
Working Mode Automatically turn on and switch to video source when video signal is detected.



SW 836B CAMERA PARAMETER:
Image Sensor 1/4 " Color CCD PC7070
TV system PAL/NTSC
Horizontal Resolution 500 TV lines
Effective pixels 928*500 pixels
Sensing Area 3.584 mm *2.688 mm
Night Vision Automatically Night Vision
Video cable length 6 Meter
Shutter Speed 1/60-1/5000
Video Out 1.0 VP-P,75 OHM
Gamma 0.45
AGC/BLC Auto
Lens Viewing Angle 170 degrees
Waterproof Level IP67~68
Minimum illumination 0.1 Lux/F=1.2(0 Lux with IR on)
Power Supply DC 12V
Operating Temperature (Deg.C) -20~+75(RH95% Max.)
Storage Temperature (Deg.C) -40~+85(RH95% Max.)
SW 836BPV PARING SENSOR PARAMETER:



Rate voltage: 12V
Operation voltage range 9-16v
Rated current 20-200mA
Detecting distance 0-2.5m
Working temperature -30~+70 degree
Display working temperature 0~+60 degree
Ultrasonic Frequency

40HKz

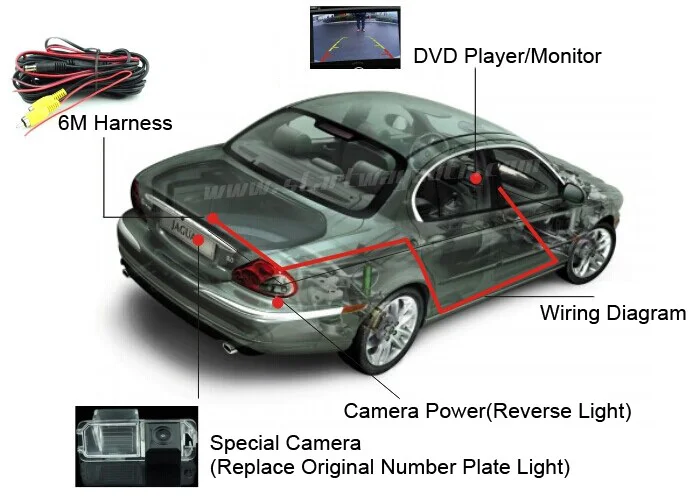

SW 836A INSTALLATION:
