Item specifics
  • Item Type: Code Readers & Scan Tools
  • Brand Name: ObdTool
  • Hardware Version: ELM327 V2.1 Bluetooth & ELM327 USB
  • Software Version: ELM327 V2.1 Bluetooth & ELM327 USB
  • Software Update: No
  • Language: English
  • Special Features: Bluetooth
  • Item Name: ELM327 V2.1 Bluetooth & ELM327 USB
  • Notice: 2 Items / Pack ELM327 Bluetooth + ELM327 USB
  • Version: ELM327 V2.1 Bluetooth & ELM327 USB
  • Feature: Bluetooth & USB Connection
  • Fuction: Car Diagnostic Tool
  • Sales Services: offered
  • Package: Standard Carton Box
  • Place of Origin: Guangdong China (Mainland)
  • LIve Test: Excellent
  • Warranty: 3 Years
Product Description



Best Price 2 Items /Pack ELM327 V2.1 Bluetooth + ELM327 USB Diagnostic Tool ELM 327 Bluetooth OBD2 ELM327 V2.1 USB Interface



Do you have any questions for this item? Just contact with me any time, i will reply you in 24 hours!
My skype: ivychenlan_2   whatsapp:+8618589020842
Trade Manager: cn1517119837csfp

USB+BT

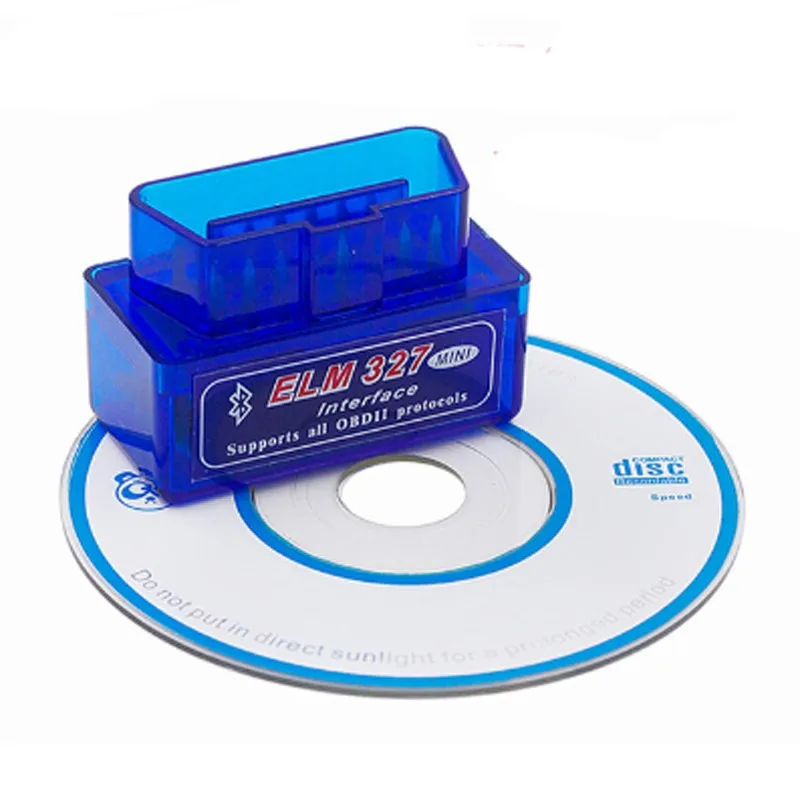

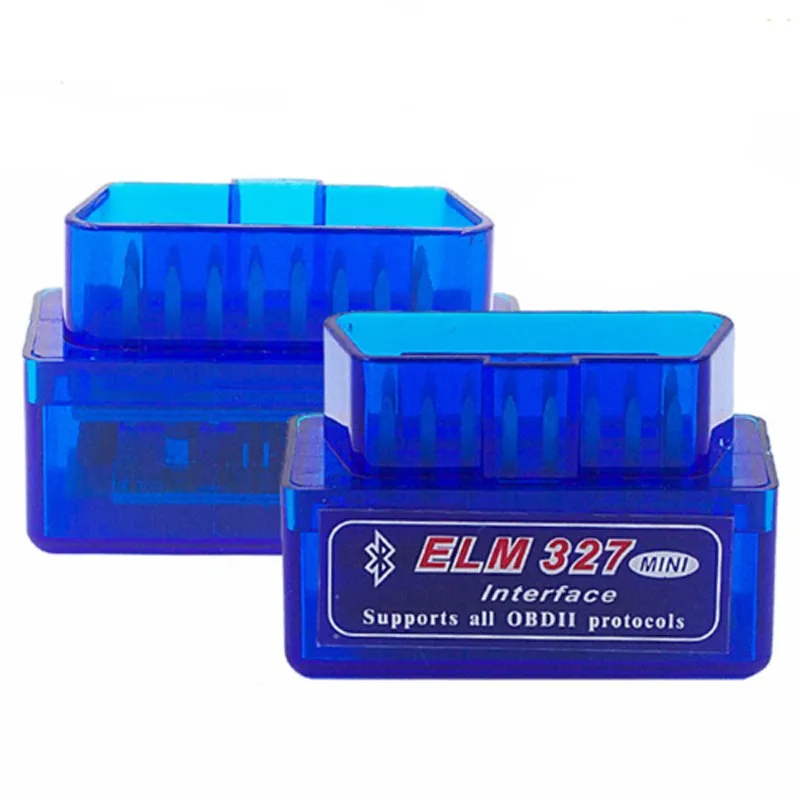

No.1 Item :  Mini ELM327 OBDII Bluetooth Scan Tool
This ELM327 suport TORQUE software for Android system cell phone,OBDscope software for Symbian system cell phone,PPC(Windows Mobile) system cell phone,ScanMaster-ELM for PC.





ELM327 Bluetooth V2.1 Features:
OBD SCAN is the newly developed wireless scan tool. It supports OBD-II protocols as follow:
ISO9141-3  (5 baud init, 10.4Kbaud)
ISO14230-4 (5 baud init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
KWP2000  5 10.4 Kbaud





Default Settings(user adjustable)
1.Works with all OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Palm, PDA,Mobile
4.Software included for Windows PC
5.Software included for Windows Smartphone






ELM327 Bluetooth V2.1 Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning
(over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others...




ELM 327 Bluetooth V2.1 Package Included
1 x Super Mini ELM327 Bluetooth Diagnostic Interface Scanner.
1 x CD Software.

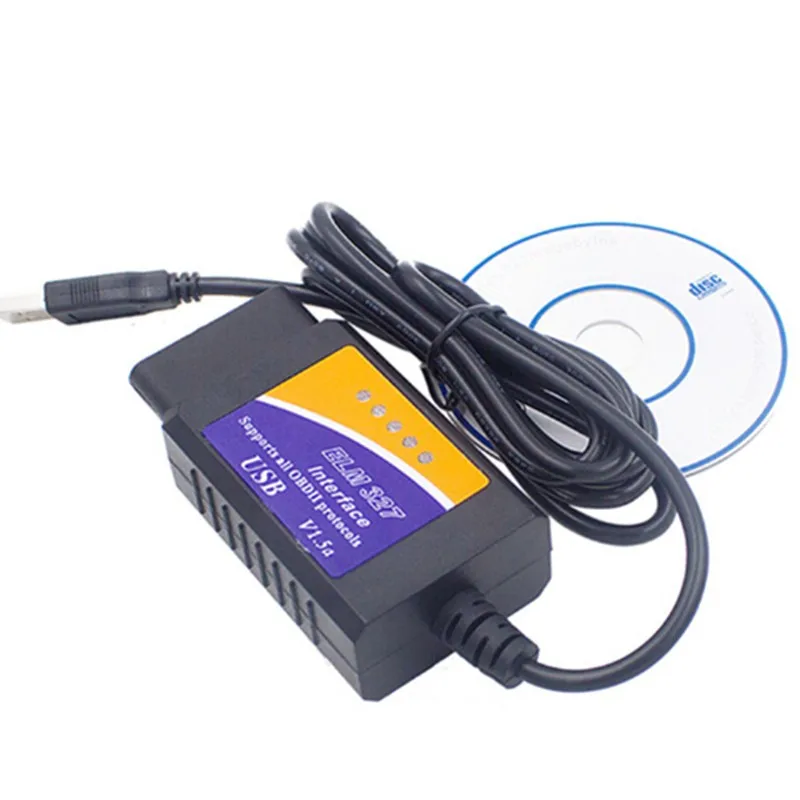

No.2 Item : ELM327 USB Diagnostic Sanner
This is ELM327 USB Diagnostic car scanner cable, compatible for OBD-II Complaint vehicles. The ELM327 interface will quickly send data to your android mobile phone or windows laptop to your vehicle in realtime.

Note: this cable can not work with IOS system device



Support OBD-II Protocols:
ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;J1850 VPW;J1850 PWM




Product Features:
1. Brand new and high quality.
2. Works with all OBD-II compliant vehicles.
3. Input side: OBD-II port.
4. Output side: USB standard.
5. ELM327 processor, RS232 output protocol
6. LED indicator light: OBD,RS232, Transmitter/ Receive,power.

7. Display current sensor data, including Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle     Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow     Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure.

8. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code    definitions in the database).

9. Clear trouble codes and turn off the MIL ("Check Engine" light).

10. Support OBD-II protocols: ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM .

11. The software supports two platforms - DOS and Windows.




Package Included:
1 x USB Car Bluetooth Diagnostic Interface Scanner.
1 x CD Software.


2 3 bt2






Packaging Details
  • Unit Type: piece
  • Package Weight: 0.6kg (1.32lb.)
  • Package Size: 12cm x 7cm x 4cm (4.72in x 2.76in x 1.57in)
