Item specifics
  • Item Type: Code Readers & Scan Tools
  • Brand Name: ObdTool
  • Hardware Version: MINI DSG Reader
  • Software Version: MINI DSG Reader
  • Software Update: No
  • Language: English
  • Special Features: ECU Programmer
  • Item Name: MINI DSG Reader
  • Feature: Chip Tuning Tools ECU Programmer
Product Description

2016 New Hot Sell MINI DSG Reader ( DQ200 + DQ250 ) for VW/AD Car DSG ECU Diagnostic Gearbox Data Reading/ Writing Tool LR10

2014 MINI DSG reader is used for AUDl and for VW new car.


Usually the tool for reading/writing new VW/AUDl gearbox data is few and very expensive, now the low cost tool is coming. You don\'t need remove ecu from car, only connect some plug to the DSG ECU and then you can read/write and save dump to bin flie.

MINI DSG Reader Highlights:

1. Supported Language: English Only

2. It is used for AUDI and VW new cars

3. Operating System Requirement: Windows XP System

4. After you install the software, you need to send us the ID for activation. otherwise, it will tell "License Expired"


20161011_114331_03420161011_114331_03520161011_114331_03920161011_114331_03620161011_114331_03720161011_114331_038
Connection:

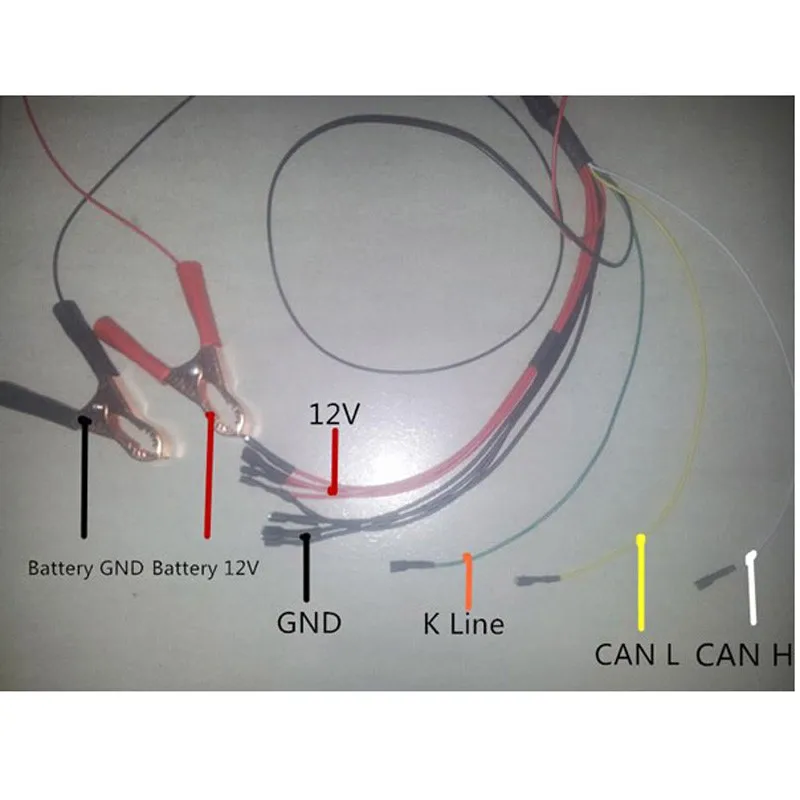

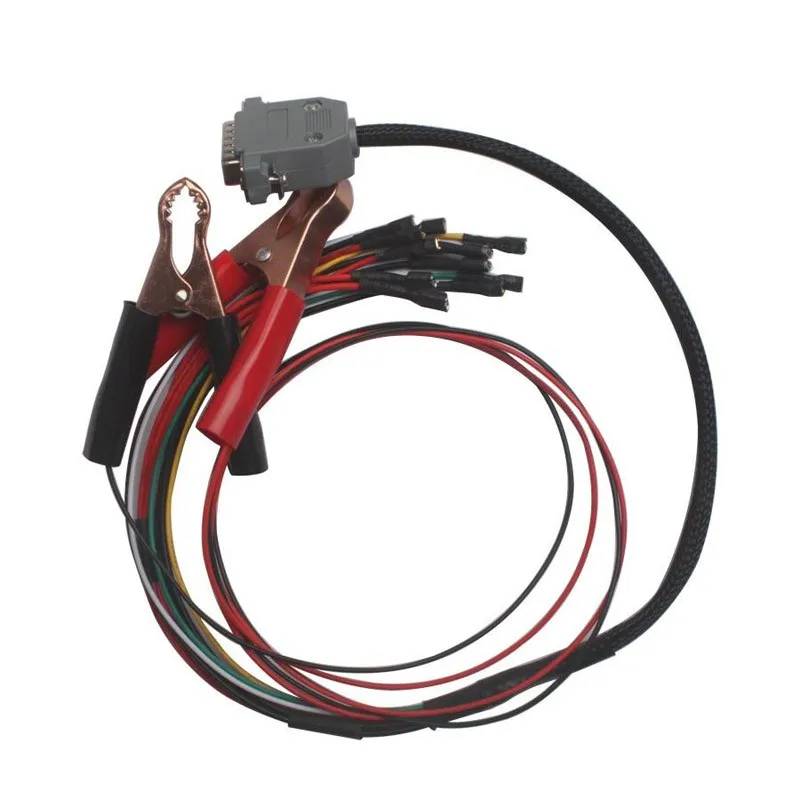

The Cable:

20161011_114331_031

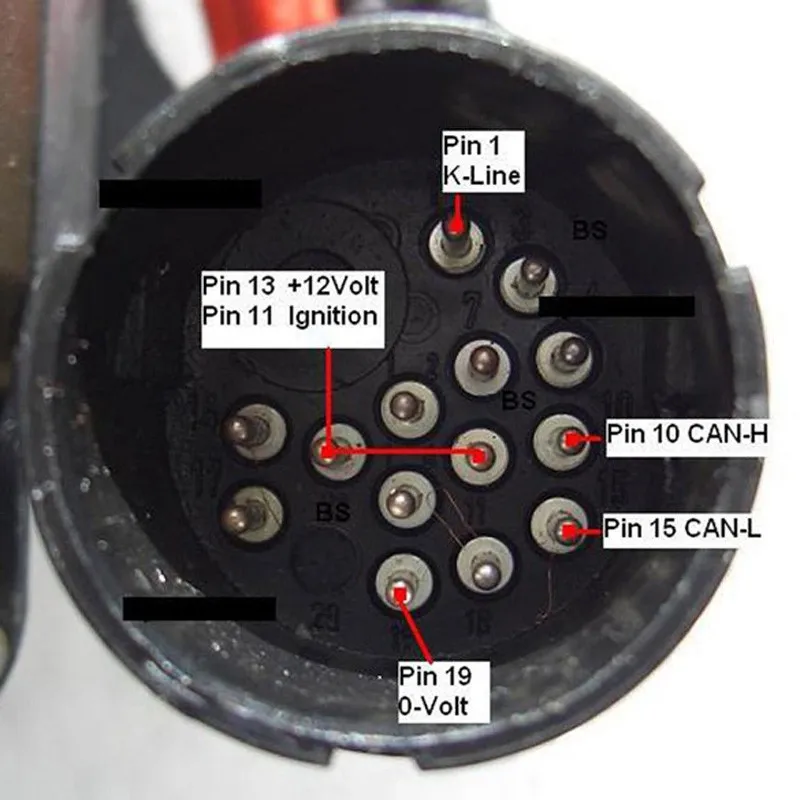

For DQ200

20161011_114331_032

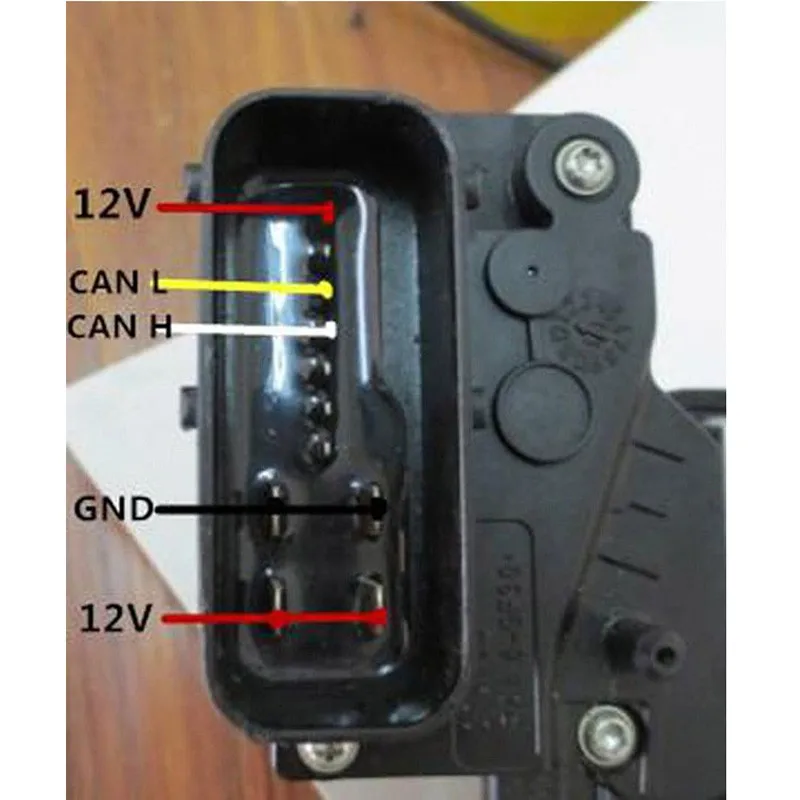

For DQ250

20161011_114331_033

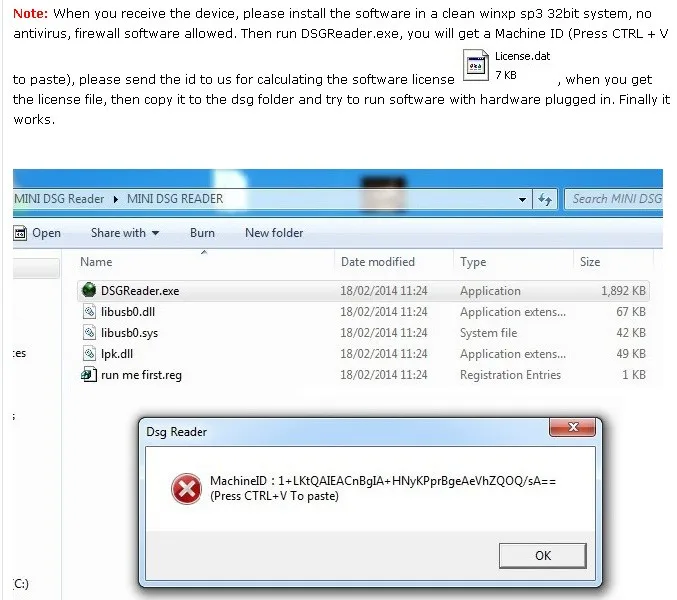

How to install MINI DSG Reader DQ200+DQ250 ?

Step 1: Copy the software in the CD, paste them to your local disk.

Step 2: Disable all Network Connection, including: the local area connection, wireless network connection and 1394 connection.

Step 3: Open the MINI DSG Reader folder, click "run me first registration entries", and a windows dialogue popup reading: Registry Editor, click OK.

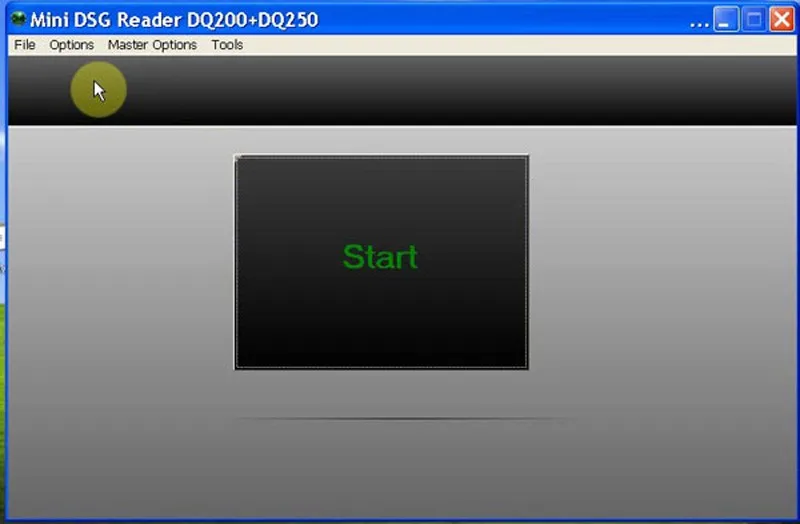

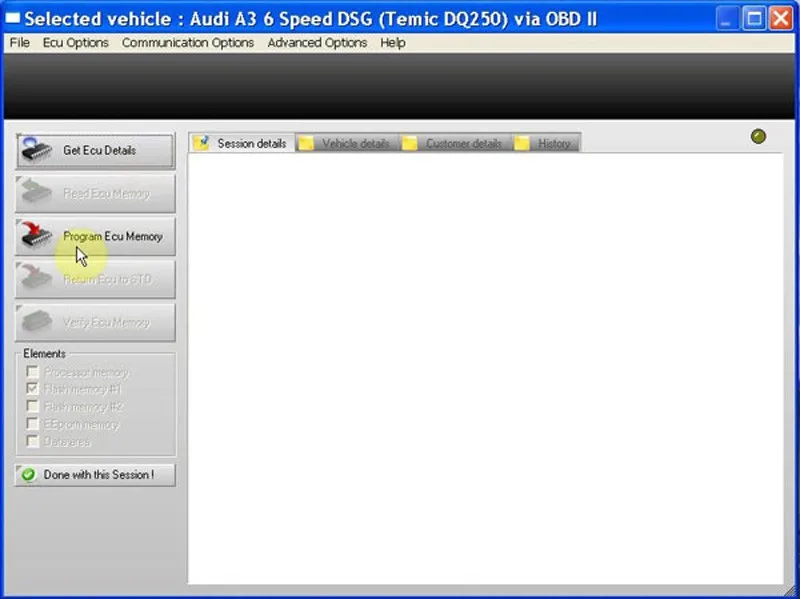

MINI DSG Reader Software Display:

20161011_114331_02820161011_114331_03020161011_114331_029


010203

Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 24cm x 16cm x 6cm (9.45in x 6.30in x 2.36in)
