KESS V2 No Token Limitation Plus KTAG K-TAG ECU Programming Tool
Top 6 Reasons To Get KESS V2
1. It\\\'s Master Version
2. Software Version: V2.13
3. Update by CD
4. No Token Limitation: can be used unlimitedly,no need to worry about tokens any more.
5. With Coverage of All Major Brands and Protocols including Line, CAN, EDC17 and MED17 and F.ord J1850
6. Supported Languages: English, German, Spanish, Italian, Portuguese, French
Top 4 Reasons To Get KTAG:
1. Software Version: V2.13
Hardware Version: 6.070
2. Available Protocols for K-TAG: BDM MOTOROLA MPC5xx
3. Support BDM Function Well
4. Multi-Language: English, Italian, German, French, Portuguese, Spanish

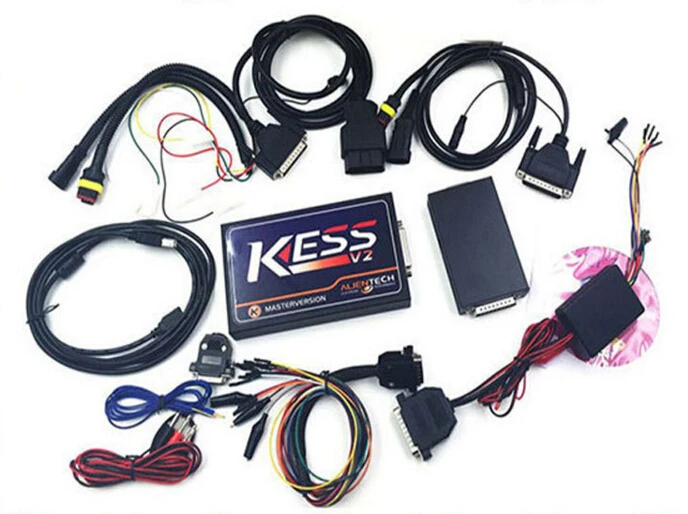

1pc x New Version Main Interface
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables
3pcs x BDM Adapters
6pcs x BDM Connectors
2pcs x Power Cable
1pc x OBD2 Cable
1pc x USB Cable (1.5meter)
1pc x CD (2012 Version SW -MASTER, Documents PDF, Pictures, etc.)
Please do not update this tool online. Please Do remember disconnect internetwhen you use this tool. Do not update it online. It will damage the tool. There are two ways to solve the problem:
1. If you know how to change chip for Kess v2, you can buy new one from us, 22.99USD each piece, not including the shipping cost.
2. If you don\\\'t know how to change chips for Kess v2, you need to send back the main unit for repair.
With coverage of all major brands and protocols including Line, CAN, EDC17 and MED17 and F.ord J1850. Kess V2 is everything you need to work as a successful tuner at a very aff.ordable price.
Kess V2 has several built in features and safeguards including:
1. Check of the battery voltage in real-time
2. Full Recovery function in case of problems
3. Automatic correction of the Checksum, (where availabl)
4 Boot-Loader mode supported
5. Management of the programming counters
6. ScanTool function to remove DTC
7. Several options of reading/writing speed
8. Option to write full file/section of the map
9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly
Detail vehicle model KESS V2,pls contact with us.
FAQ About installation and usage:
Q: KESS V2 is master version or slave version?
A: It is master version.
Q: KEES V2 just can be installed on windows XP system?
A: KESS V2 can install it on Windows 7 and Windows XP.
Q: What is the difference Between KESS V2 and K-TAG?
A: KESS V2 has OBD function, but Ktag does not have this function.
Q: Can KESS V2 update?
A: Please don\\\'t update it, or it will damage the firmware of kess v2, you just can ship back to us for repair.
Q: What is the difference Between KESS V2 and Fgtech V53?
A: They both can do many cars, but they do cars via different ways. Fgtech V53 has BDM function, but KESS V2 does not have. Kess V2 has Anti-mediation lock module, it can do new and encrypted cars better than Fgtech V53.
Q: Customer told us that KESS V2 can not do EDC17 well, such as B.osch EDC 17 (cp04-CP14-CAN-Med17.X ) and B.osch B.osch EDC 17 C54( Passat, Golf,Crafter,Octvia,Yeti-VW). EDC16 all ok.
A: Yes, Kess V2 can not do EDC17 at present. It can do EDC16 well, but when you do it, you need to connect the Anti-mediation lock module to read and write data for vehicles. Becuase new style vihicles have new encrypted ways.
Q: How to do checksum for kess v2? Does the kess v2 automatically re-write it? Kess V2 can do trucks? such as Mercedes MP1/MP2/MP3 or MAN TGA?
A: After reading the software, the device will automatically do checksums. KESS V2 can not do truks, it will damage the firmware of kess v2. But KTAG can do trucks.
Q: If you encountered the problem for checksum error when reading the ecu? how to solve it?
A: One of our customer tested by this way: please search the software " microsoft visual C++ 2005,2008,2010" on google, then install it on your computer, then it can solve this problem.
Q: When KESS V2 read ECU, I got checksum error.
A: Please search visual C++ 2005 library on Google, then download it and install it, this error will be solved.
Q(1): How does KESS V2 checksums work? Does KESS V2 automatically confirm and rewrite? Does KESS v2 work with truck? Such as: Mercedes MP1/MP2/MP3 or MAN TGA.
A (2): After reading the software, kess v2 will automatically calibrate checksums. KESS V2 doesn\\\'t work with truck, because the truck voltage is too high and KESS V2 will be burnt out.
Q (2): Then K-tag work with truck?
A (2): Yes, it does.
Q: How to connect KESS V2 to K-LINE med 17, do you have any manual or diagram?

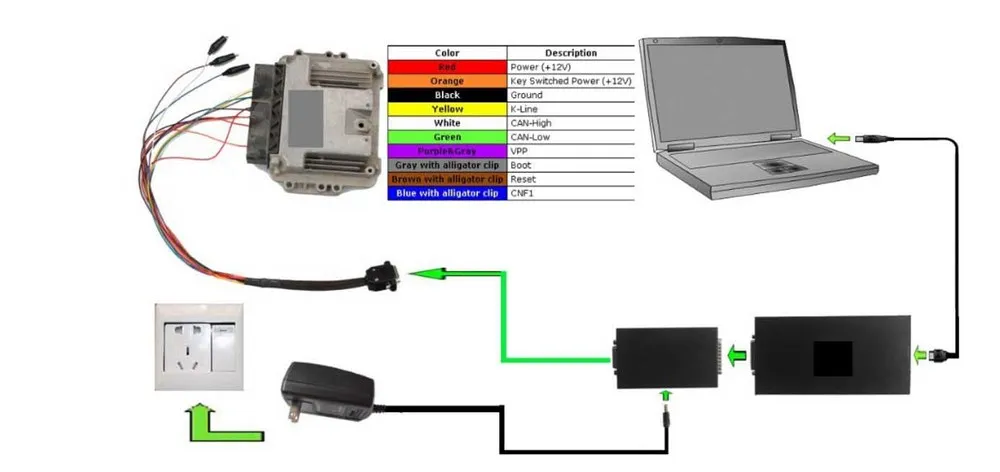

A: If your car is OBD diagnostic socket, just plug the OBD cable into the car; if your car is not OBD diagnostic socket, after you select the ECU type in the KESS V2 software, the diagram will appear and show you how to connect
