Report item
Item specifics
  • Item Type: Code Readers & Scan Tools
  • Language: Spanish,English,Dutch,Greek,Polish,French,Italian,Portuguese,German
  • Software Version: newest
  • Hardware Version: newest
  • Brand Name: Autel
  • Software Update: Yes
  • Special Features: OBD2 Engine Faults Code Reader
  • product: Autel Autolink AL519
  • performance: strong and stable
  • quality: 100% Original
  • package: standard package
  • shipping: fast and safe
  • Multi-Language: Dutch Portuguese English,French,Spanish,German,Italian, Polish and etc
  • Compatibility: OBDii/CAN
  • Fit For: US Cars After 1996, EUR& Asia Car After 2000
  • autel al519: Live Data display and playback
  • Features : Turns off Check Engine Light (MIL), clears codes and resets monitors
Product Description

1



3



Original Autel AutoLink AL519 OBD-II & CAN Scanner Engine Faults Code Reader Autel AL519 OBD OBD2 Scanner Diagnostic Tool Multi-languages



1.Supported Languages:



English, French, Spanish, (German,Italian,Polish  ,  Portuguese  ,Romanian,  Dutch  ,Greek)

Note:

  • Pls leave a message which language you need,We will help you install it well before shipping,It\'s very important ,Thanks.
  • if you don\'t have tell me which language you want before shipping,also you can tell me when you receive it,thanks .



2.Autel AutoLink AL519 Supported Car Makers:



Works on ALL 1996 and newer vehicles (OBDII & CAN) – domestic and import

European cars: Works on After 2001 and newer  OBDII/OBD2/EOBD/CAN-BUS Vehicles

Japanese CarsWorks on After 2003 and newer  OBDII/OBD2/EOBD/CAN-BUS Vehicles

American Cars: Works on 1996 and newer OBDII/OBD2/EOBD/CAN-BUS Vehicles





3.Autel AutoLink AL519 Functions:



  • Turns off Check Engine Light (MIL), clears codes, and resets monitors
  • Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
  • Live Data - Displays, records and plays back complete OBDII vehicle data stream
  • Built in speaker provides audible tone every 3 minutes when vehicle becomes ready

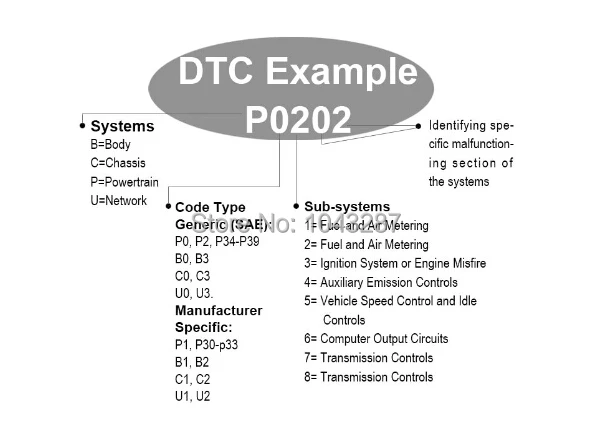

  • Retrieve vehicle information (VIN, CIN, and CVN), Retrieves generic (P0, U0), manufacturer specific (P1, P2, P3, and U1) and pending cod
  • Internet updateable













Brief Production :

The AutoLink AL519 OBDII/EOBD Scanner supports all 10 modes of OBDII test for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, the AutoLink AL519 is truly the ultimate in power and affordability, allowing users to do their jobs faster. In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.




AL519 Features:

Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
Easily determines the cause of the Check Engine Light(MIL)
Turns off Check Engine Light (MIL), clears codes and resets monitors
Displays DTC definition on the TFT color screen
Views freeze frame data
Displays monitor and I/M readiness status (emissions)
Reads live PCM datastream
Displays live O2 sensor test data
Graphs data (1996 and newer vehicles)
Reads, stores and playbacks live sensor data
Enhanced OBDII Mode 6
Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
Retrieves vehicle information (VIN, CIN and CVN)
Multilingual menu and DTC definitions

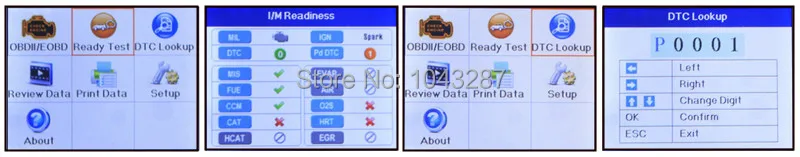

AutoLink AL519 OBD/EOBD Features Screen:


al519 1 al519 2


Autel AL519 Ready Test Screen:

al519 3

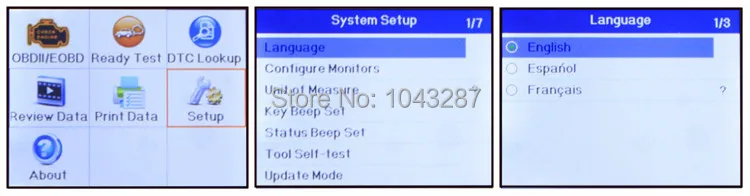

Autel AL519 Setup Screen:

al519 4

QQ20150806163543 QQ20150806163601 QQ20150806163626 QQ20150806163643 QQ20150806163654

QQ20150806163440


Autel AutoLink AL519 Specification:

Display TFT color display (320 x 240 dpi)
Operating Temperature 0 to 60C (32 to 140 F)
Storage Temperature -20 to 70C (-4 to 158 F)
External Power 8.0 to 18.0 V power provided via vehicle battery



Autel AutoLink AL519 Package List:

1pc x Auto Link® AL519
1pc x User\'s manual
1pc x CD
1pc x USB cable
1pc x OBDII Cable
1pc x Carry case

2


2

IMG_1702

IMG_1691 -  (2)IMG_1699IMG_1696IMG_1694IMG_1704IMG_1709IMG_1711IMG_1715 -
