Item specifics
  • Item Type: Code Readers & Scan Tools
  • Language: Korea,Spanish,Finnish,Denish,Slovenia,Polish,Portuguese,French,Turkish,Hungarian,Swedish,English,Dutch,Japanese,Greek,Italian,Russian,Czech,German
  • Software Update: No
  • Brand Name: AUTOPMALL
  • Hardware Version: VAS 5054A
  • Software Version: V3.03
  • Special Features: Bluetooth
  • Model Name: VAS 5054A Full Chip with OKI
  • Car Maker: Audi, Seat, Skoda, VW
  • Language: Romanian/Croatian/Chinese
  • Language Type: Multi-language
  • Delivery Time: Within one working day
  • VAS5054A: Original
Product Description

item pictures

15



highlights

1. Full chips version include UDS chip OKI Chip...
2. Support all Protocol of vw include UDS
3. Multi-Language: (you can choose any language you need freely)
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
4. Supported Car Models: VW, AUDI, for SKODA, SEAT
5. Bluetooth Versionitem description
Overview:

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.

The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.

No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

VAS 5054A scanner which is with full chips equipped ( OKI , control module and
buzzer). It is top quality in the market with full functions. This VAS 5054 is with latest ODIS software V3.0.3 with keygen, you can activate by yourself, very convenient.

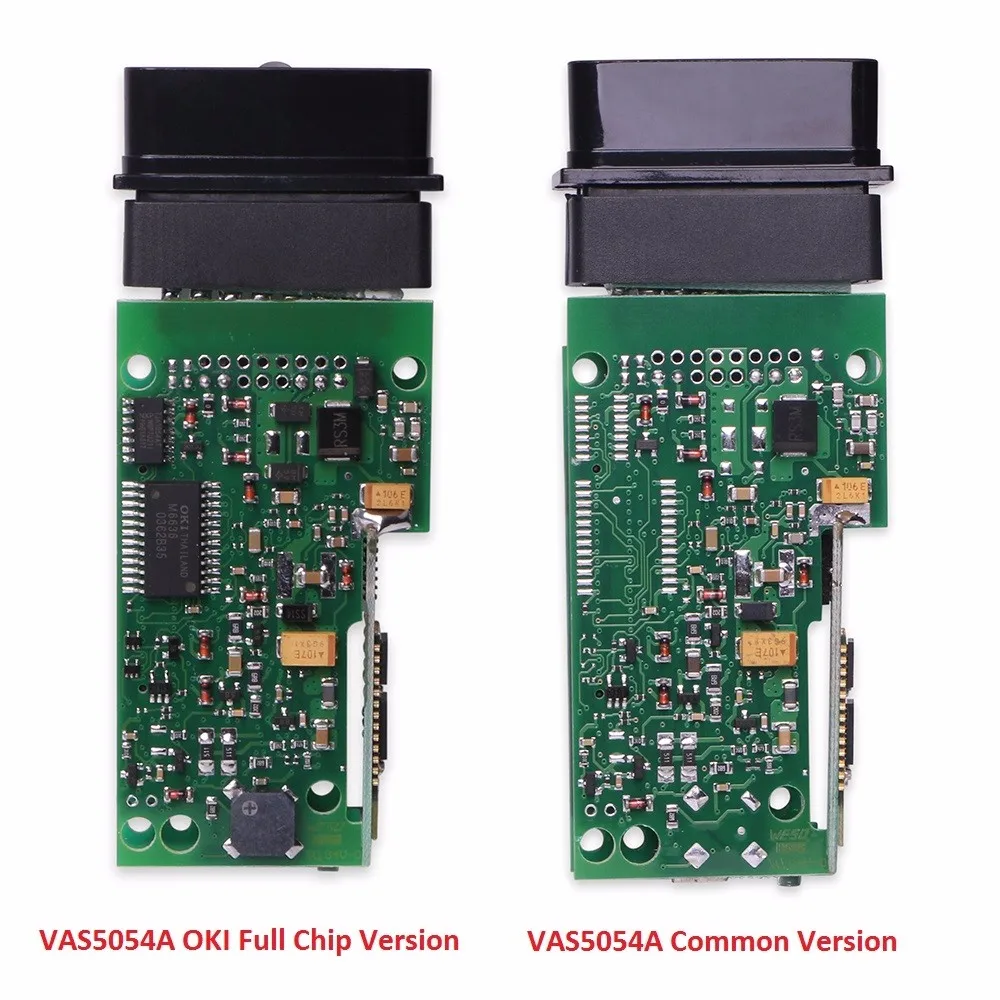

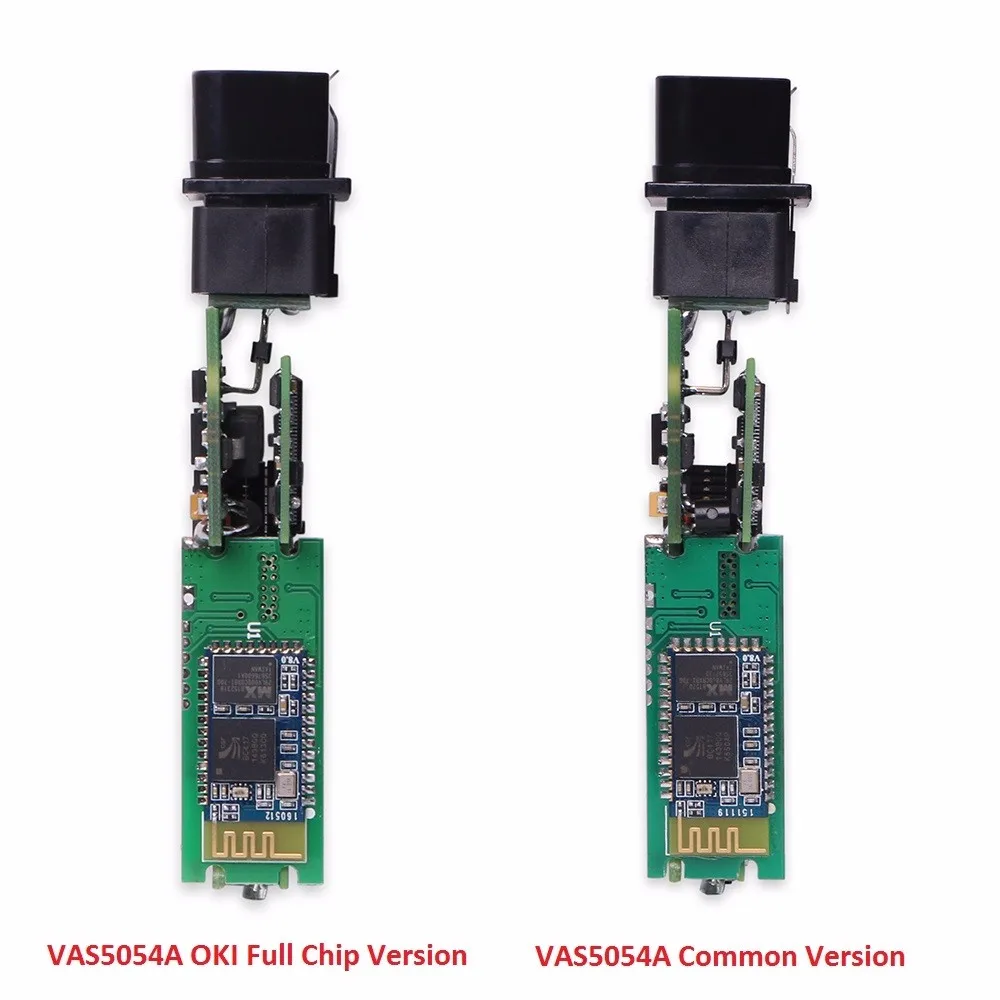

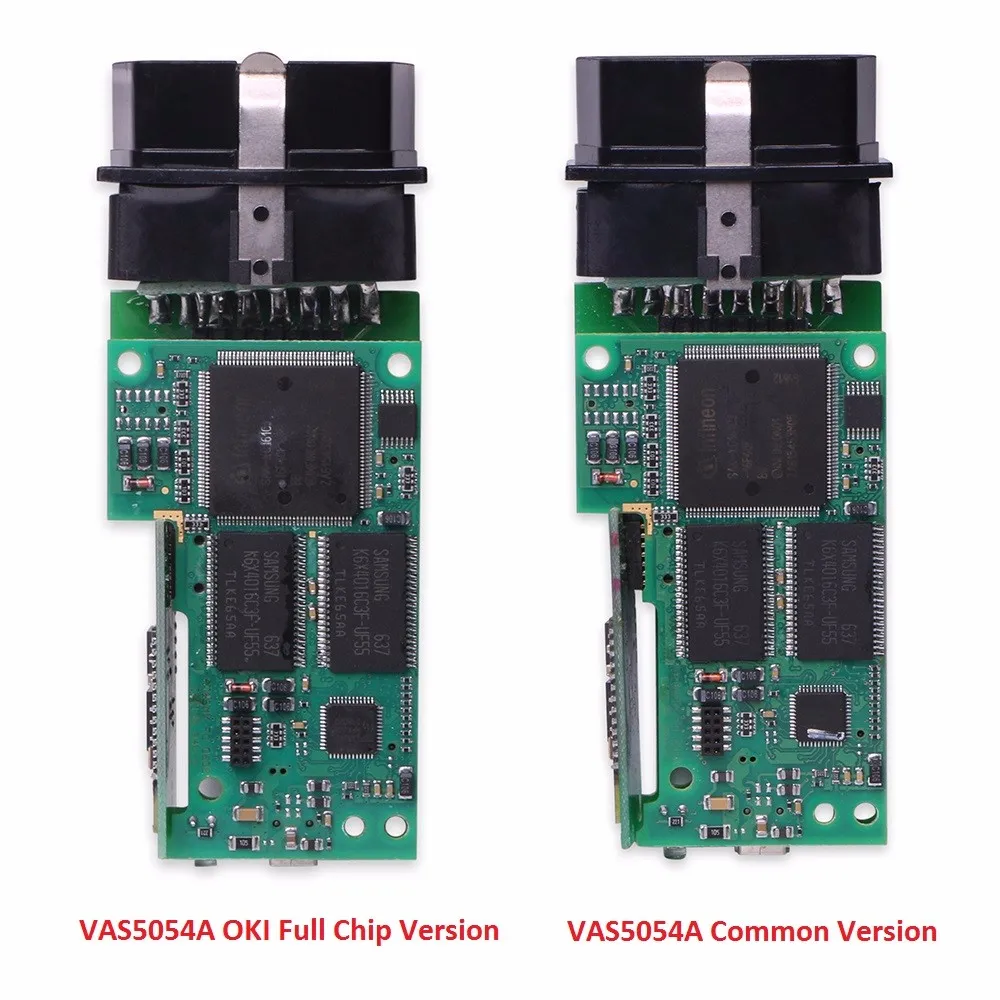

Compare with the VAS5054A OKI Full Chip Version and Common Version:

Features:

1. Full chips version include UDS chip OKI Chip...
2. Support all Protocol of vw include UDS
3. Multi-Language: (you can choose any language you need freely)
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
f1
4. Supported Car Models: VW, AUDI, for SKODA, SEAT
5. Bluetooth Version


Bluetooth USB Adapter Feature:

* Bluetooth V2.0 Compliant
* USB UHCI/OHCI spec 2.0 compliant
* Working distance 0-100 meter
* Works with Bluetooth enabled mobile phones


VAS 5054A ODIS Computer Windows System Requirements:

Windows XP(xp2/xp3), Windows 7(32/64bit), Windows 8
System C:// have to be NTFS format
C:// need to have at least 10GB space for installing VAS 5054A


VAS 5054A Specification:

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.


Access via Bluetooth:

After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.


Access via USB:

You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.


The Following Vehicle Bus Systems are Supported:

K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)


packing list

1 * VAS 5054A Main unit
1 * USB Cable
1 * USB Bluetooth Adapter
4 * CD Software
1 * Carry Case


end(1)end(2)end(3)end(4)end(5)end(6)end(7)end(8)
