Item specifics
  • Item Type: Code Readers & Scan Tools
  • Language: English,French,Russian,German
  • Hardware Version: AD510 version
  • Brand Name: ANCEL
  • Software Version: AD510
  • Software Update: Yes
  • Special Features: citroen peugeot diagnostic tool
  • Product Name: Ancel AD510 OBD Code Reader
  • Ancel AD510 warranty: Three year quality than ELM327
  • Ancel AD510 Shipping: Free Shipping Fast, Low Value Declare
  • Ancel AD510 Functions: I/M Readness, fault code scan, EVAP test, O2 Tes
  • Ancel AD510 Language: English, French, German, Russian
  • Ancel AD510 OBD Protocols Compatibility: CAN/ OBD2/ EOBD/ JOBD All protocols equiped
  • AD510 Scanner Features: Color Screen, Car Battery Tester, Tips for Users, Bet Quality
  • Ancel AD510 Functions 1: Code Readers & Scan Tool Same As ELM327
  • Ancel AD510 Usage: For DIYer, Garage, for Auto Shop, Auto Service Stat
Product Description
related

ANCEL AD510 OBD2 Scanner AutoLink Fault Code Reader Support All OBD2 CAN EOBD JOBD Escaner Including Battery Monitor Function


The Ancel AD510 OBDII/EOBD Scanner supports all 10 modes of OBDII test for a complete diagnosis. Featuring the unique patented One-Click I/M Readiness Key, TFT color display and built-in speaker, the  Ancel  AD510  is truly the ultimate in power and affordability, allowing users to do their jobs faster. In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.

HTB1q1F3OXXXXXblXVXXq6xXFXXXo

HTB1ZEZMLXXXXXcBXXXXq6xXFXXXp

Top 7 Reasons To Get Ancel AD510 OBD Code Scanner :
1. Supported Language:  English, French, German, Russia

2. Works on ALL 1996 and newer vehicles, which work protocols including AD510 support protocols.

3.Ancel AD510 featuring Live Colorful Graph data, Intergrated memory card allows Playback and printable data.

4. Interpretation of OBD doubt, unique patented One-Click I/M Readiness Key, TFT color display, it is the best partner for your car repairing.

5. Monitor your vehicle battery voltage, protect your vehicle.

6. Easily determines the cause of the Check Engine Light(MIL)



Monitor vehicle battery voltage in real-time:

IMG_20161031_110145

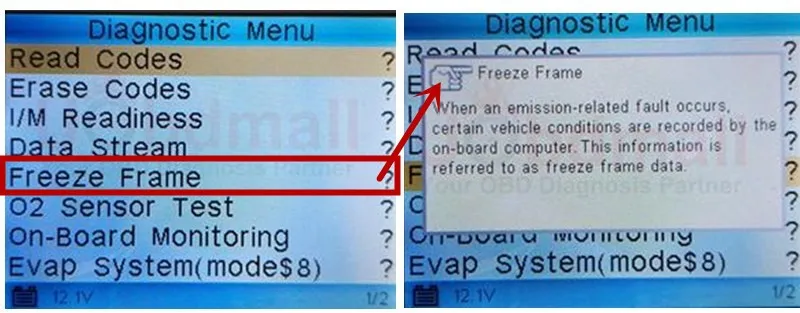

Tips Interpretation of OBD doubt:

36020161031104654439_

initpintu_

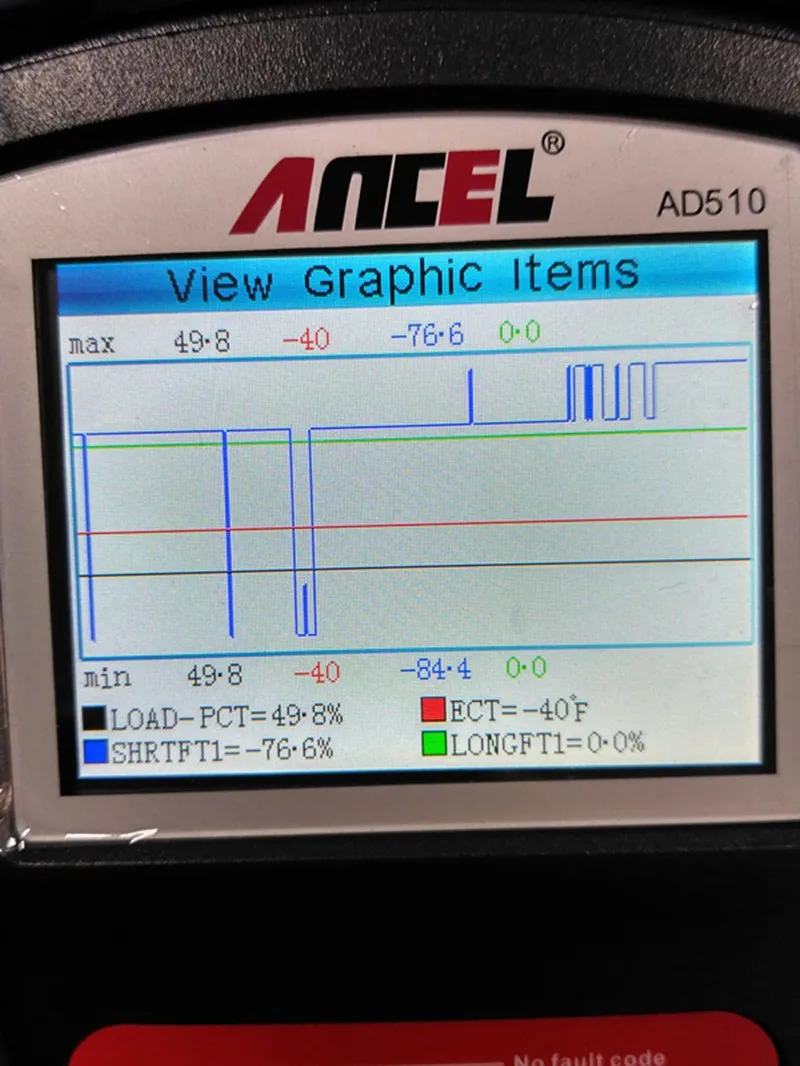

Live Colorful Graph data, Intergrated memory card allows Playback and printable data:

IMG_20161109_143501_HDR









HTB1q1F3OXXXXXblXVXXq6xXFXXXo_
2 (2)_


description


AD510 Features:

  • Works on ALL 1996 and newer vehicles (OBDII & CAN) – domestic and import, which vehicle work protocols including AD510 support OBD CAN protocols list.
  • Features the unique patented One-Click Readiness Key for quick State Emissions readiness check and drive cycle verification
  • Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
  • Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
  • Easily determines the cause of the Check Engine Light(MIL)
  • Turns off Check Engine Light (MIL), clears codes and resets monitors
  • Displays DTC definition on the TFT color screen
  • Views freeze frame data
  • Displays monitor and I/M readiness status (emissions)
  • Reads live PCM datastream
  • Displays live O2 sensor test data
  • Graphs data (1996 and newer vehicles)
  • Reads, stores and playbacks live sensor data
  • Enhanced OBDII Mode 6
  • Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
  • Retrieves vehicle information (VIN, CIN and CVN)
  • Multilingual menu and DTC definitions – English, Spanish and French, Russian etc.
  • Internet updateable and upgradeabl
  • Battery voltage check
  • Interpretation of OBD doubt





AD510 MIL DTC Display

2

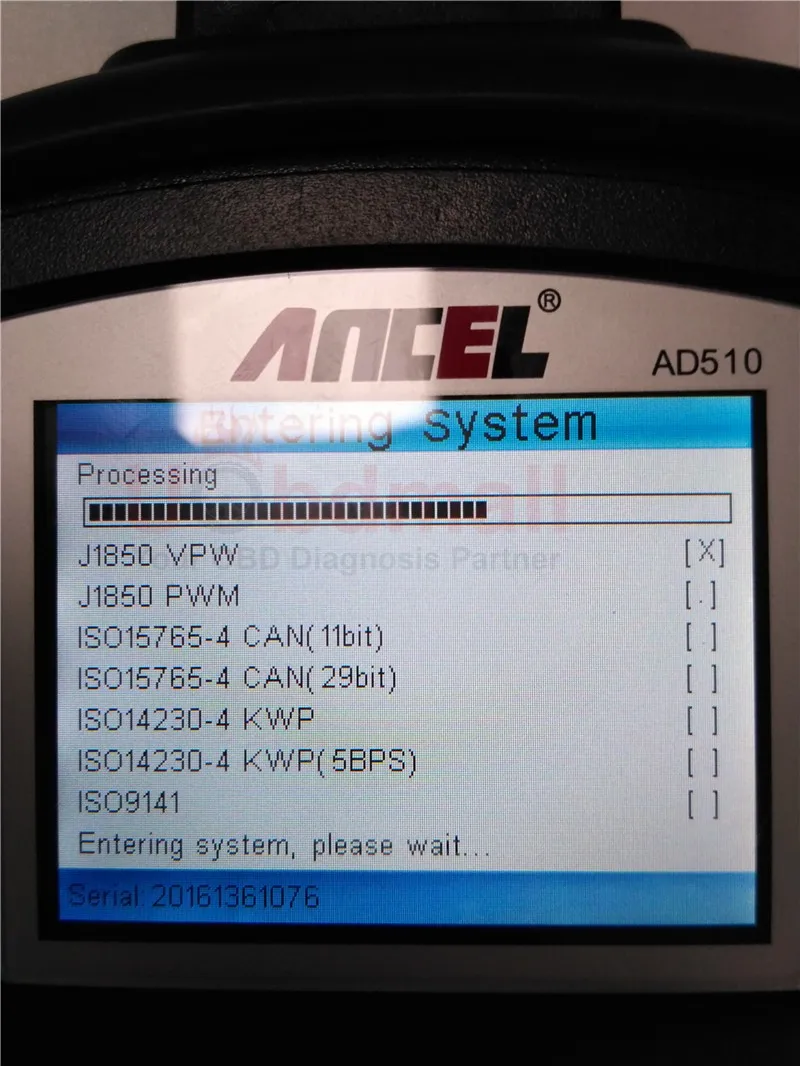

ANCEL AD510 screen display obd protocols list:

Ancel AD510IMG_20161029_115034




Ancel AD510 support list:

ANCEL AD510 Support Various Vehicles:
European cars: Works on all cars since 2002 to 2016 (with standard EOBD, CAN OBDII etc protocols)
American Cars: (North & South) and Austrilian Cars: Works on all cars since 1996 to 2016 vehicles (with standard OBDII,CAN)
Asian Cars: Works on all cars since 2005 to 2016 (with OBDII/JOBD CAN..)
Chinese Cars: after 2009, standard OBD2/ OBDI

AD510 also supports your local car makers, such as GAZ, UAZ, Lada, SSangyong, both diesel and gasoline will be supported, only if the car year meet OBD protocols.

Note:If you are not sure whether it compatible with your car, please do not hesitate to contact us first

Please tell me the car model, release year and engine, 12V gasoline or 12V diesel engine

for example : for Audi A4, 2011 year, 2.0 TDI, Diesel

I will check it for you to avoid you buy it wrong





How upgrade ANCEL AD510 Online?

QQ20161103152722

1. Load the CD and install the \'ANCEL\' Program on your computer.

2. Connect the AD510 to PC, automatically install driver, then the AD510 is in update mode.

3. Download Latest patch from www.anceldirect.com , and select the file and load into \'ANCEL\' Program.

4. Click on "Update Rom" and waiting for update success.

QQ20161103152434




ANCEL AD510  Package List:

1pc x Ancel AD510

1pc x User\'s manual

1pc x USB cable

1pc x OBDII Cable

1pc x Carry case





FAQ Area before order:


1. Vehicle Linking Error?

A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit). You need to do the following to check up:
Verify that the ignition is ON.
Check if the scan tool’s connector is securely connected to the vehicle’s DLC.
Verify that the vehicle is OBD2 compliant.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.
Verify the control module is not defective.

2. Operating Error?

If the scan tool freezes, then an exception occurs or the vehicle’s ECU (Engine Control Unit) is too slow to respond to requests. You need to do the following to reset the tool:
Reset the scan tool.
Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the testing.

3. Scan tool doesn’t power up?

If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
Check if the scan tool’s connector is securely connected to the vehicle’s DLC;
Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
Check vehicle battery to make sure it is still good with at least 8.0 volts.

4. LED lamps not working?

If you turn on the scan tool and perform the I/M Readiness test but the LED lamps are not working, there may be several possible causes, including bad connection and ignition off. In this case, follow these steps to check the scan tool.
Make sure the cable is connected to the DLC securely.
Verify the ignition key is in the KOER position.
Run the LED Test in the System Setup menu. If the scan tool did not pass this test, there is a problem with the LED lamp. Please contact us


5. Where\'s Our vehilcle OBD Interface (Port) ?
HTB1g5zrOpXXXXbtXpXXq6xXFXXXI

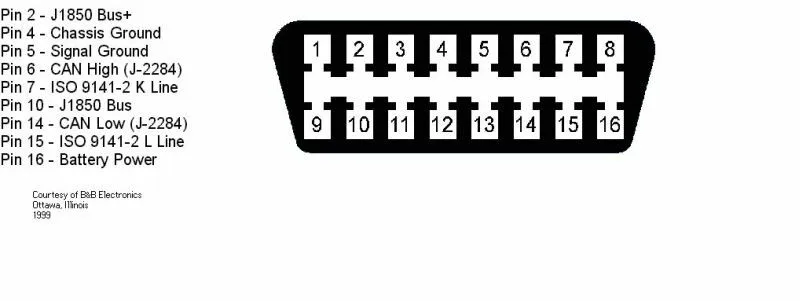

6. What\'s Mean About OBD 16pin Port and OBD Fault Erro Code?
360se_picture - 144503_pinout - HTB1UdUfNXXXXXXuXVXXq6xXFXXXS



7. How to use the Car Sticker ?

chetie-4



ok
