Item specifics
  • Item Type: Code Readers & Scan Tools
  • Brand Name: ertengtec
  • Hardware Version: NEW
  • Software Version: NEW
  • Software Update: Yes
  • Language: English
  • Special Features: Bluetooth
  • Model Name: Viecar 4.0
  • Protocol: Support All OBD-II Protocols
  • Operation System: IOS & Android&PC
  • Update: By Email/CD
  • Delivery Time: Within One Working Day
Product Description

item pictures

645723189

highlights

1.Viecar 4.0 is a multifunctional and Comprehensive car electronic products with smallest body and more chips in the world.
2.Viecar 4.0 was designed by Bluetooth 4.0 dual moudle which could support IOS and Android Device.
3.Viecar 4.0 transfers data rapidly, with low power dissipation advantage and saves power.
4.Viecar 4.0 including fuel consumption analyze and assessment could save oil save money for us.
5.Viecar 4.0 also record driving behavior, analyze car information, suggest improvement to help us to correct our bad driving habits.
6.By connecting cars ECU and computer it realize 360 degree whole car testing could find out the fault code earlier to help us to deal with it in time.

item description
Attention:

NO CD Included
About Software,there is no included CD with package.So when u receive the item,please Scan the 2D code of  User Guide and download software directlyfrom your Android or IOS phone.


Overview:

Viecar 4.0 is a multifunctional and Comprehensive car electronic products with smallest body and more chips in the world. It was designed by Bluetooth 4.0 dual moudle which could support IOS and Android Device. It transfers data rapidly, with low power dissipation advantage and saves power. By connecting cars ECU and computer it realize 360 degree whole car testing could find out the fault code earlier to help us to deal with it in time.

What\'s more, it including fuel consumption analyze and assessment could save oil save money for us. It also record driving behavior, analyze car information, suggest improvement to help us to correct our bad driving habits.

Viecar 4.0 is not only a information display system but a very cool head up display(HUD). It helps us enjoying unforgetable experience without head drop staring at car instrument. With very cool real-time dashboard design, it expend more datas and improves our visul experience
D1 D2 D3 D4 D5


Feature:

* The newly developed high-quality wireless scan tool, support all OBD2 protocols.
* Work with all OBD2 compliant vehicles.
* The smallest shape, with the highest level of integration chip.
* With bluetooth 2.0, faster data transmission.
* Enable to read diagnostic trouble codes.
* Small bluetooth interface with a 16 pin socket.
* Support different kinds of devices to use this scan tool: for Android system phones, for Symbian   system phones, for Windows XP and for WIN7 32bite computers.
* Stable performance, low power consumption.
* Plug and play, easy installation.


Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Display current sensor data, including:

  1.Engine RPM
  2.Calculated Load Value
  3.Coolant Temperature
  4.Fuel System Status
  5.Vehicle Speed
  6.Short Term Fuel Trim
  7.Long Term Fuel Trim
  8.Intake Manifold Pressure
  9.Timing Advance
  10.Intake Air Temperature
  11.Air Flow Rate
  12.Absolute Throttle Position
  13.Oxygen sensor voltages/associated short term fuel trims
  14.Fuel System status
  15.Fuel Pressure


Specification:

* Means Of Communication: Bluetooth Dual (2.0/4.0)
* Software Platform:  Android/ IOS
* Power: 9V-16V
* Electric Current: 45mA
* Temperature: -40 C~85 C
* Humidity: Below 60%
* Size: 45mm*40mm*18mm
* Model: For OBDII cars


Supported OBD-II protocol:

* SAE J1850 PWM (41.6 Kbaud)
* SAE J1850 VPW (10.4 Kbaud)
* ISO 9141-2 (5 baud init, 10.4 Kbaud)
* ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
* ISO14230-4 KWP (fast init, 10.4 Kbaud)
* ISO15765-4 CAN (11bit ID, 500 Kbaud)
* ISO15765-4 CAN (29bit ID, 500 Kbaud)
* ISO15765-4 CAN (11bit ID, 250 Kbaud)
* ISO15765-4 CAN (29bit ID, 250 Kbaud)


Compatible Operation System:

* Window: ScanMaster-ELM, ScanTool.net, PCMSCAN
* Android: Torque_Pro, DashCommand, E OBD2
* Symbian: OBDScope
* Software supported platform: Windows XP,Windows 7/8,Android, Symbian and so on.

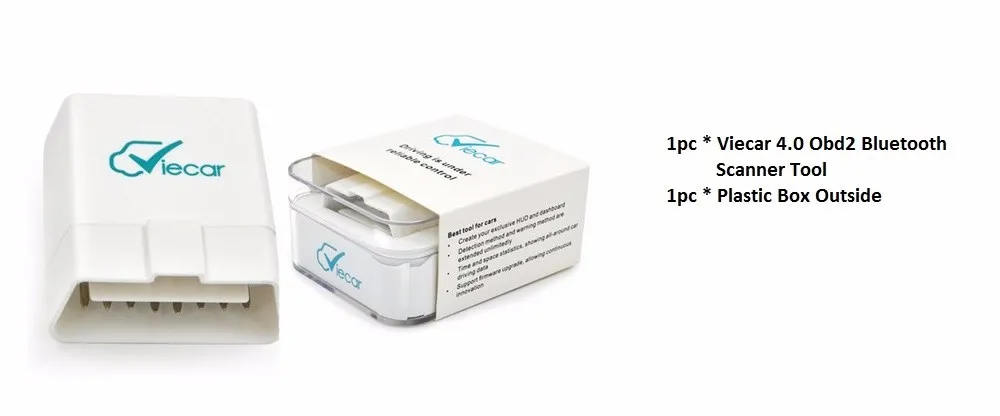

packing list
packing lists




end(1)end(2)end(3)end(4)finalend(5)end(6)end(7)



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 10cm x 5cm x 5cm (3.94in x 1.97in x 1.97in)
