Item specifics
  • Item Type: Code Readers & Scan Tools
  • Brand Name: BAYNES
  • Hardware Version: V1.5 ELM327
  • Software Version: V2.1 ELM 327
  • Software Update: Yes
  • Language: Czech,Denish,English,Finnish,French,German,Hungarian,Italian,Polish,Spanish,Swedish,Turkish
  • Special Features: bluetooth or wifi
  • ELM 327 Languages Supported:: Multi-Language 12 Kinds
  • Place of Origin: Guangdong, China (Mainland)
  • Warranty:: 3 Years
  • Feature:: Supports All OBD2 Protocols
  • Car Makers:: Multi-Brand Cars
  • Model Name:: Super Mini ELM 327 Bluetooth
  • Software Version:: V2.1
  • Firmware Version:: V1.5
  • Package:: wifi a
Product Description


***1. 100% Original ELM327.***

***2. Fully stocked, Shipping to you in 24 Hours after you paying.***

***3. We offer 1 year Warranty.***

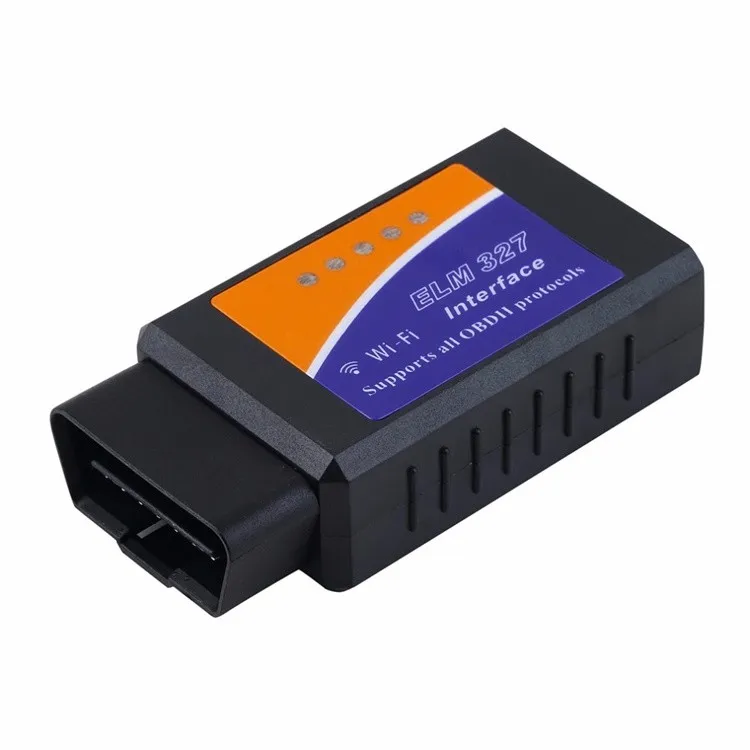

WIFI Elm327
WIFI Elm327 is a versatile, all-round high-tech automotive electronics products, with the vehicle ECU computer interface and data synchronization, realize the vehicle body electronic control system electronic monitoring to understand; you can also onboard ECU computer system inside the vehicle feature set, so that the driver can be more humane to use their own car.Is not just an information display system, but also a very powerful fault detection equipment, to see if the vehicle is faulty, the system can very clearly the fault information is displayed in the form of text out, you can eliminate hidden dangers through the vehicle fault information at the same time You can also find fault as soon as possible to ensure that during the warranty period of the vehicle, enabling timely and appropriate treatment to protect the interests of owners.
 Features: WIFI ELM327 is the latest based on personal phone scan tool. It supports all OBD-II protocols and is compatible with many software. It outputs protocol WIFI and mobile terminal interconnection.

Software Support Platform: Windows XP, Windows 7/8 Android, Symbian, IOS, PC systems.

Multi-Language: Czech,Danish,German,English,Spanish,French,CroatianHungarian,Italian,Polish,Serbian,Turkish

Supported OBD-II protocols:

SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
Software features:
Software can do the following:
Read error diagnostic codes - General and manufacturers of special use, and display their meaning (a database of over 3000 generic code definitions)
Clear the error code and shut off the MIL ( "Check Engine" light)
Display current sensor data, comprising:
Engine revolutions per minute (RPM)
Load the calculated value
Coolant temperature
Fuel System Status
Vehicle speed
Short-term fuel situation
Long-term fuel situation
Intake manifold pressure
Injection advance time
Intake air temperature
Airflow velocity
Absolute throttle position
Oxygen-sensing voltage and short-term status of the associated fuel
Fuel System Status
Fuel pressure
There are many other monitoring fuel consumption data
Future software features:
Chart display and data logging
Freeze frame data
Continuous and discontinuous oxygen probe results

WIFI Elm327:


Packaging Details
  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
