Item specifics
  • Item Type: Code Readers & Scan Tools
  • Brand Name: KONNWEI
  • Hardware Version: Other
  • Software Version: Other
  • Software Update: No
  • Language: English
  • Special Features: KW903 Car Auto ELM327 Bluetooth OBD2 OBD-II CAN-BUS Diagnostic Scanner
  • Car Maker: Audi, Benz, BMW, Chevrolet, Ford, Honda, Hyundai, Opel, Seat,
Product Description

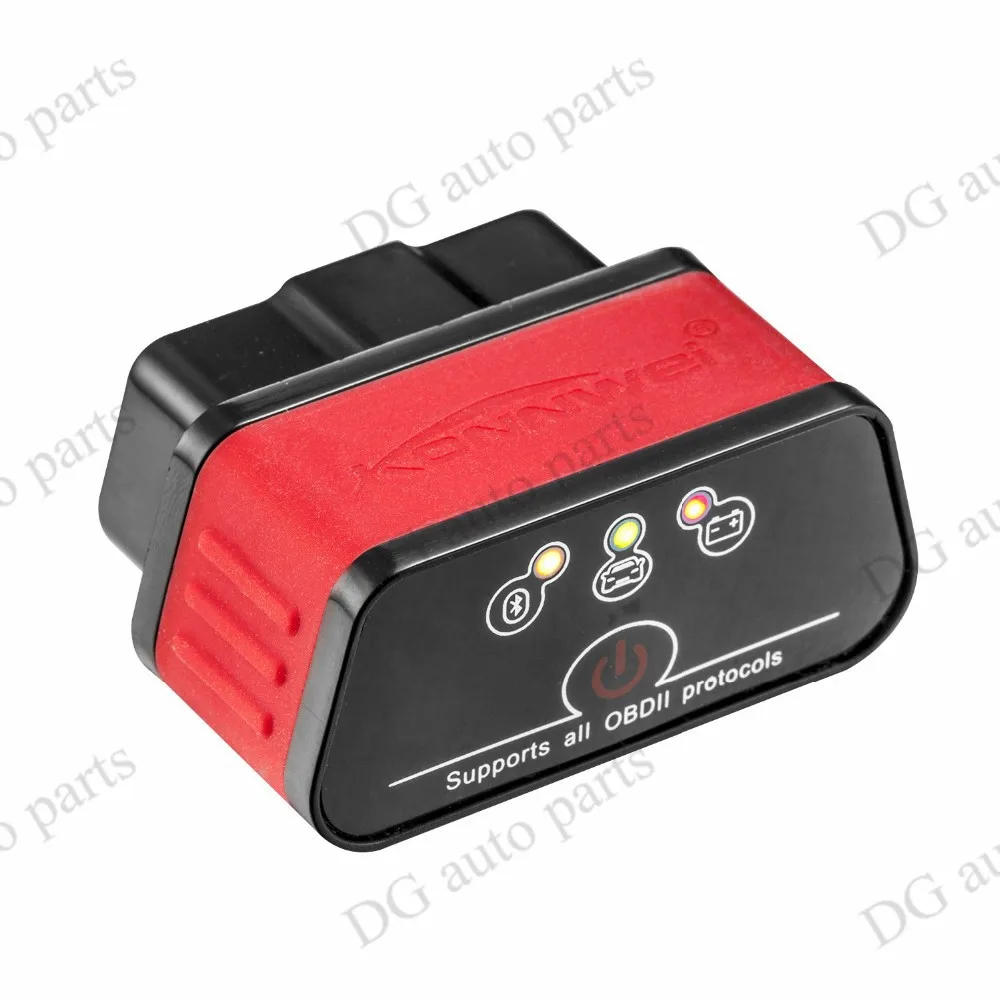

KONNWEI KW903 Car Auto ELM327 Bluetooth OBD2 OBD-II CAN-BUS Diagnostic Scanner



Attention: For Andorid & Windows system operation only, can\'t connect to Iphone OS.

Features:
  • Supply voltage(VDD):12V
  • Work temperature range: -20 ~ +70°C
  • Storage temperature range:-40 ~ +125°C
  • RF sensitivity(Basic Rate): -85db
  • Modulation Mode:GFSK
  • Frequency Range:2402 ~ 2480MHZ
  • Transmission Range:10M
  • Bluetooth Profile:SPP
  • UART Params:38400,8,n,1
  • Small size, compact structure. Plug and never unplug
  • Stable wireless connection
  • No wires or batteries (adapter is powered by the diagnosis size sockets)
  • Stop communication, wait half an hour, auto sleep
  • Supports all OBDII protocols
  • The adapter uses the fastest and most reliable ARM chips

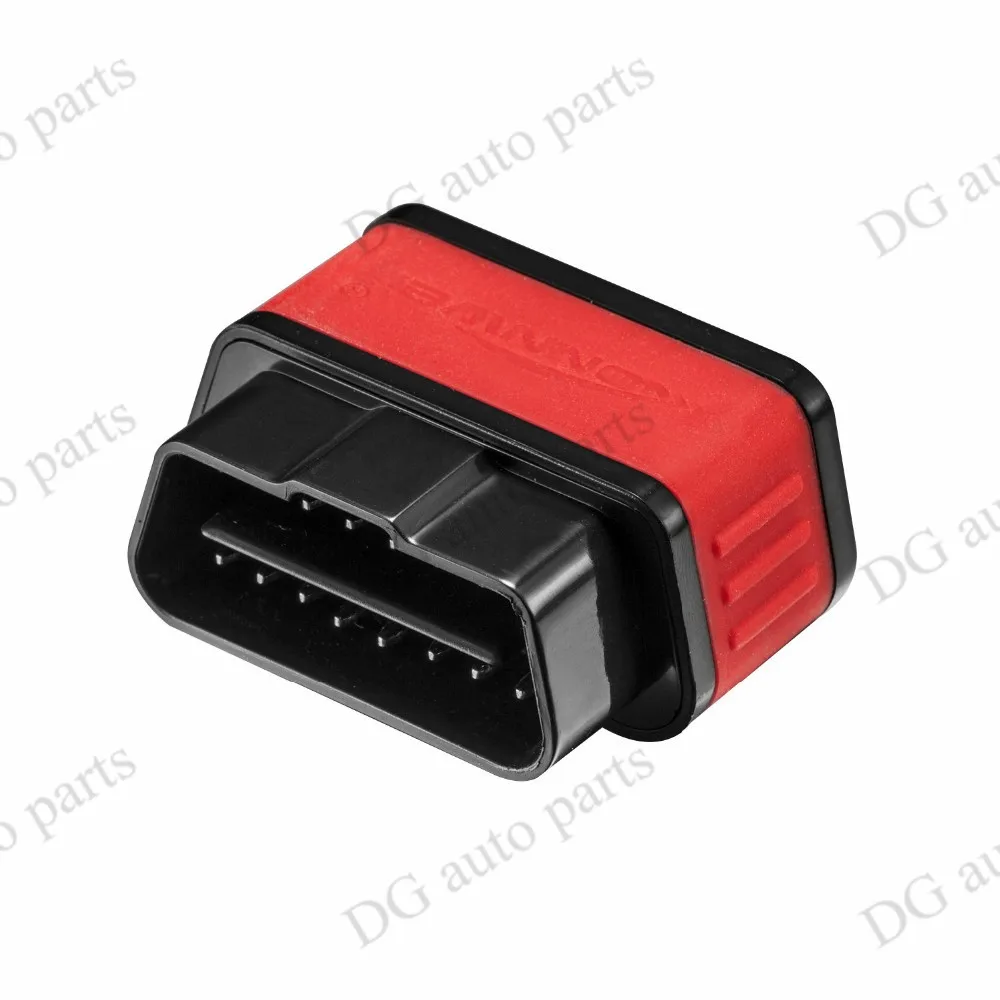

The device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, with associated diagnostic procedures .

Doing these simple operations, you will be able:
  • Measure the fuel consumption.
  • Display real-time operating performance of the car, such as momentum,
  • vehicle speed, oil pressure, coolant temperature, engine load, intake manifold
  • pressure, throttle position, the values of oxygen sensors, air intake
  • temperature, and more.
  • Turn off the MIL (signal Check Engine).
  • Download data to external media in a variety of formats for later printing.
  • Record various parameters, display graphics in real time, and more.

With KW903 you will be able to perform a complete computer diagnostics car
and even to correct minor faults without resorting to service stations.

KW903 scantool is a high-quality automotive scanning tool, supports all OBD-II protocols :
0.Automatic

1.ISO9141-2(5 baud init,10.4Kbaud)
2.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
3.ISO14230-4 KWP(fast init,10.4 Kbaud)
4.ISO15765-4 CAN(11bit ID,500 Kbaud)
5.ISO15765-4 CAN(29bit ID,500 Kbaud)
6.ISO15765-4 CAN(11bit ID,250 Kbaud)
7.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)
IMG_8364IMG_8373






Packaging Details
  • Unit Type: Set
  • Package Weight: 0.2kg (0.44lb.)
  • Package Size: 20cm x 10cm x 5cm (7.87in x 3.94in x 1.97in)
