Item specifics
  • Electronic: No
  • Item Length: 4.3
  • Model Name: Battery Analyzer BA101
  • External Testing Certification: CE
  • Material Type: Plastic
  • Item Height: 0.35
  • Item Width: 2.75
  • Brand Name: ANCEL
  • Software Version: NEW
  • Hardware Version: NEW
  • Voltage: 12V
  • Item Weight: 0.5
  • Power: 24w
  • Item Type: Battery Testers
  • Special Features: Ancel BA101
  • Model: 12V Automotive battery tester
  • Warranty: One Year
  • Shipping: Low value for customs and free shipping
  • Quality: 100% Original
  • Special Features: Cranking Test, Charging Test
  • Language: English Spainsh French German Italian Polish
  • Function: load voltage ripple status and charging system
  • Ancel BA101 Features: Battery Analyzer
  • Ancel BA101 Function 1: 2000CCA 220Ah
  • Ancel BA101 Function 2: battery test, cranking test, charging test
Product Description

item picture


12V Car Battery Tester Ancel BA101-0312V Car Battery Tester Ancel BA101-0612V Car Battery Tester Ancel BA101-0812V Car Battery Tester Ancel BA101-0912V Car Battery Tester Ancel BA101-1412V Car Battery Tester Ancel BA101-1512V Car Battery Tester Ancel BA101-16

item description


Q1: How to choose a better car battery tester?

A1: It is accuracy. Compared to other tester, the test results of Ancel Battery tester are the same(tolerance ±15) when testing at the same time. More Accurate!!


Q2: How to know my car\'s battery type

A2:  You can open your car and to check on the battery. There is Battery Type and value.


Q3: What is Ancel BA101 CCA value and AH?

A3: CCA100-2000, 30-220Ah, which is the highest CCA in the market. Ancel BA101 is informative display and functionality higher than others


Q4: What language it has?

A4: Ancel BA101 has two version, European Version including     English, Spanish, French, German, Italian and Polish    , Asian Version including English Japanese, Korean and Chinese We will send out version according to your country.

Ancel BA101_1

Ancel BA101 Automotive 12V Car Battery Tester
1. Simple and easy to use
2. Test batteries on and off the vehicle
3. Accurate results in milliseconds
4. Battery Life Analysis
5. Analysis Result : Good or Replace
6. Large easy to read LCD display.
7. Test results based on JIS, EN, DIN, SAE and IEC Standards.
8. Languages: English, French, Spainsh, German, Italian, Polish, Japanese and Korean
9. Quick test—input battery volume (AH), then it can show the battery status.
10. vehicle cranking system test--- cranking time, voltage and status.
11. vehicle charging system test—load voltage, unloaded voltage, ripple status and charging system status.
12. Store the testing result, print function

Ancel BA101 Functions:

Test Result: Good or Replace
Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
Internal resistance value (m )
Life in percentage (%)
Cranking Test
Charging Test

Operating Parameters:


System voltage: 12 Volts

Input voltage range: 9V~15V

Power requirements: No internal batteries required. Power on when hooked up during testing.

AH range: 30-220AH

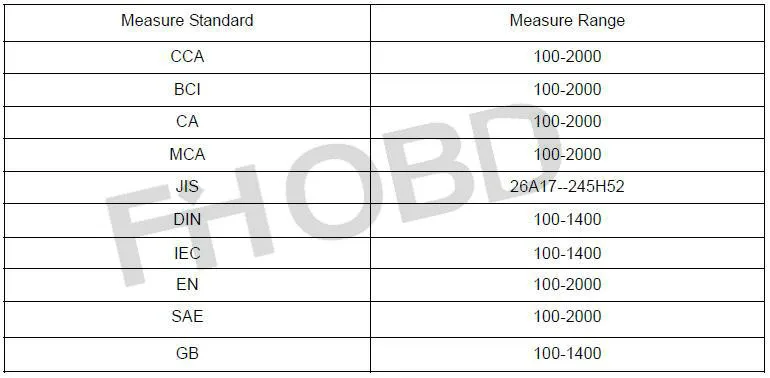

Testing range:

Ancel BA101-2_1 Ancel BA101-3_1 Ancel BA101-4_1 Ancel BA101-5_1


Ancel BA101 Automotive 12V Vehicle Battery Test


1. Quick test

It can make sure the battery status, including voltage, CCA, electronic resistance, rated CCA, charging value, healthy value and testing result in one second. Once input the AH value—battery rated capacity, which is marked in the label of the battery.

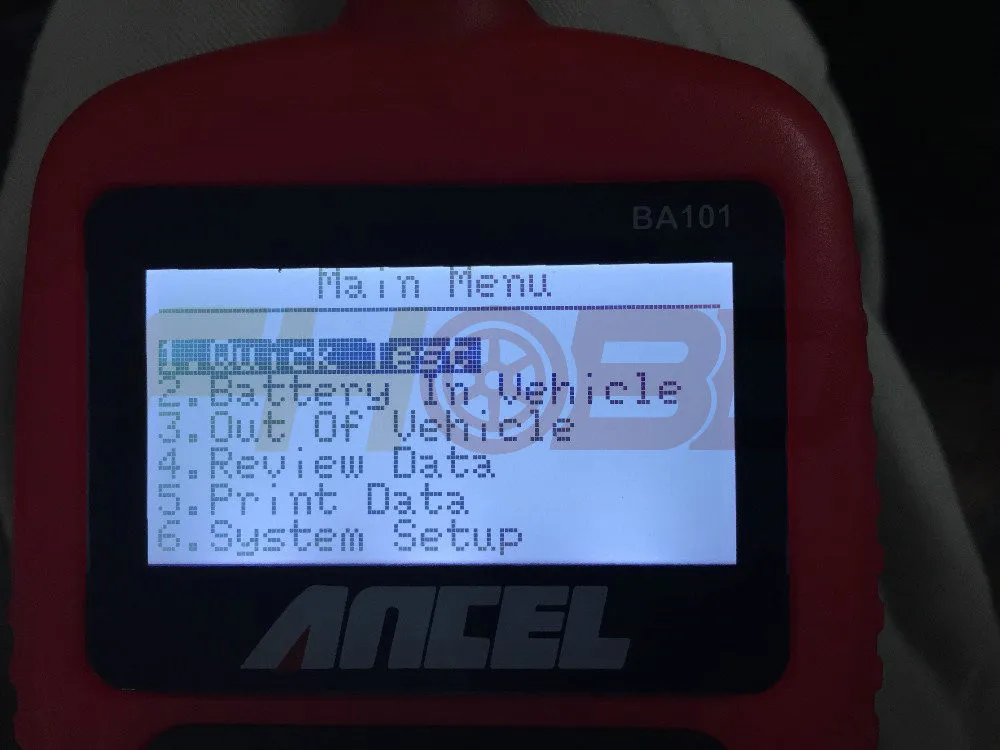

1). Press UP/DOWN key to select the Quick test, then press ENTER key to confirm.



2). Input the rated battery capacity—xx AH, in general, the battery capacity for 12V vehicle is above 30AH.


3). Then press enter key, the testing result will show one of these, as below Battery test result includes 5 types as following:

Good Battery: The battery is without any problem, please be relaxed to use


Good, Recharge: Good battery but low current, recharge before using.


Replace: The battery is near to or already reached the end of the using life, replace battery, otherwise, bigger danger will be followed.

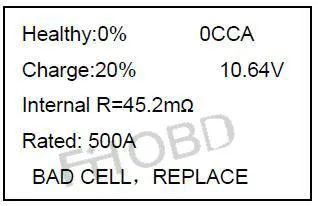

Bad Cell, Replace:Battery interior damaged, bad cell or short circuit, replace battery.
Charge, Retest: Unstable battery shall be recharged and retested to avoid error. If same test result appears after recharge and retest, the battery is regarded as damaged, replace the battery.

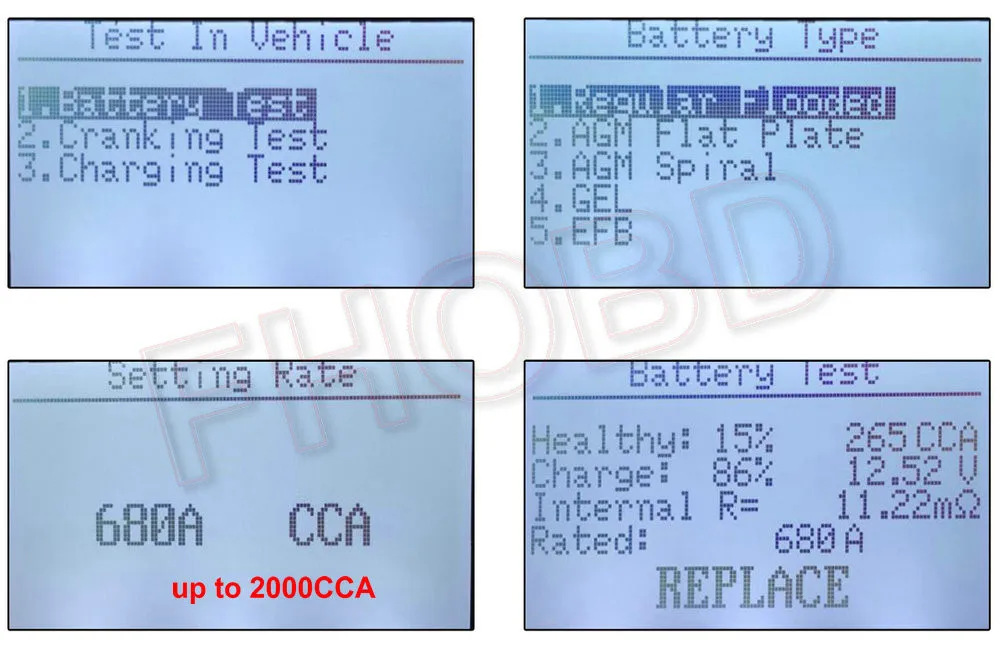

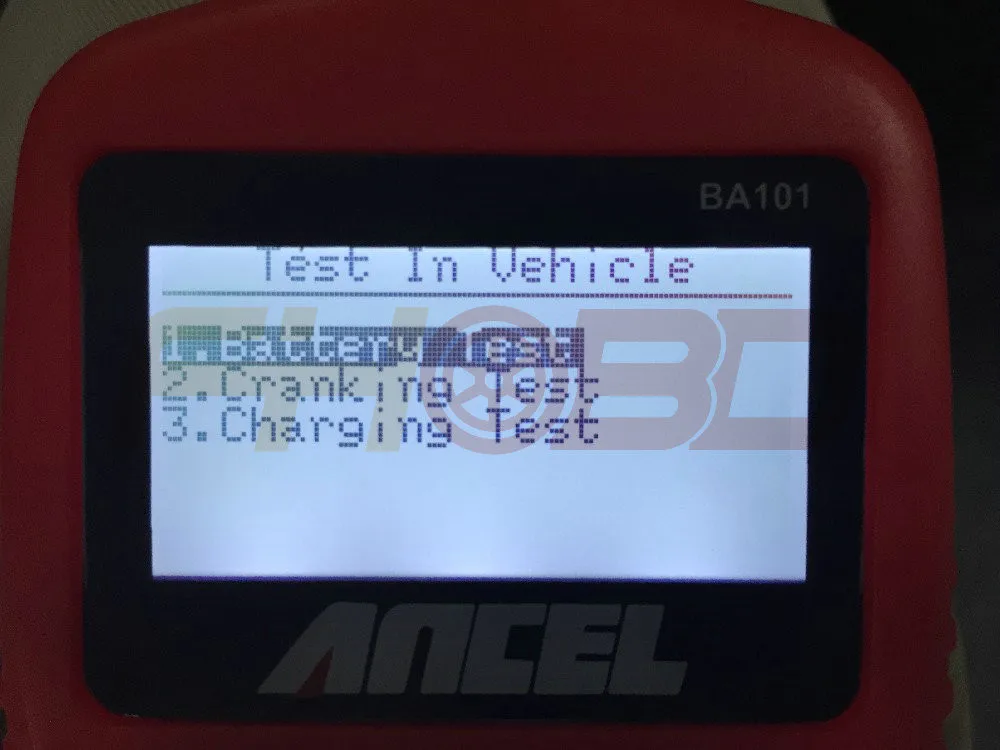

2. Battery In Vehicle Test






Cranking Test






Charging Test

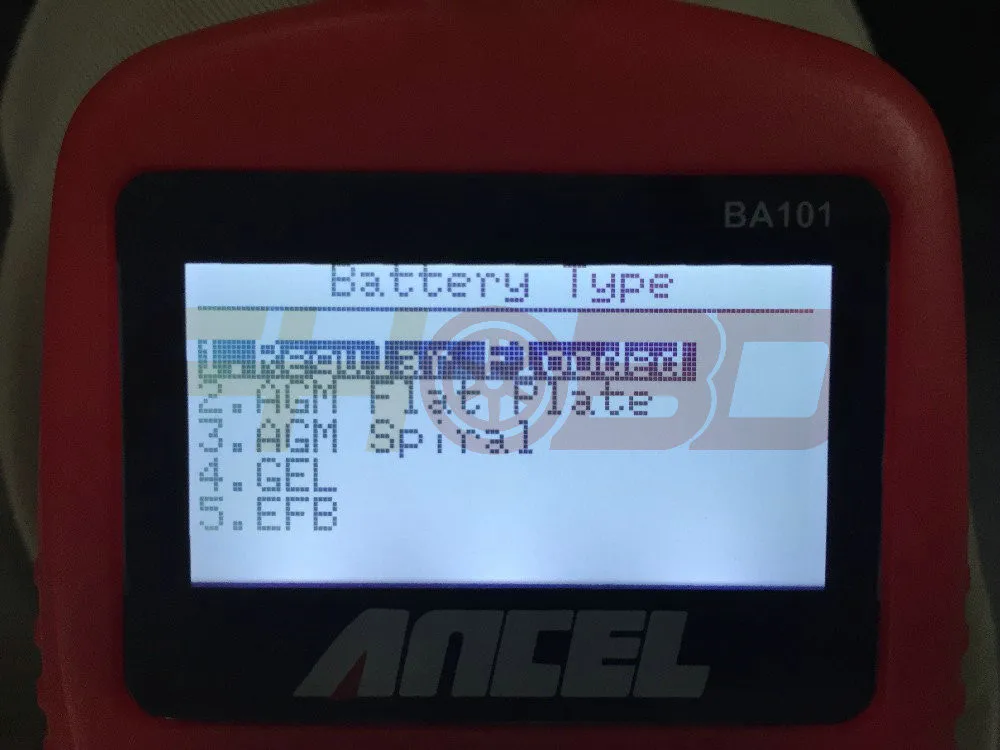

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.
Package including:

1pc x Ancel BA101 Automotive 12V Vehicle Battery Tester

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.5kg (1.10lb.)
  • Package Size: 24cm x 16cm x 5cm (9.45in x 6.30in x 1.97in)
